Candy Making Plant

Vacuum Cooker
Cooling Plate
Batch Roller (Motorized)
Three Stage Rope Sizer
Candy Forming Machine
Three Way Cooling Conveyor
Rost-O-Plast (Center Filled) Candy Forming
Center Filled (Liquid Filler)
Candy Wrapping Machine (Double End Twist)
Pillow-Pack (Candy Packing) Machine

VACUUM COOKER

Technical Data
Application	Cooking and Vacuum
Capacity	50 Kegs./ Batch
Batch Time	20-25 Minutes/ Batch (Depending on Steam pressure and other allied conditions)
Steam Working Pressure	120 Lbs./ Sq. In.
Drive	Stirrer 1.5 H.P.
Vacuum Pump	5 H.P
Stirrer Speed	45-90 RPM
Dimensions (L X W X H)	1200 mm X 1200 mm X 2000 mm
Weight	Net 600 Kg. Gross 750 Kg.

Vacuum Batch Cooker is suitable for Candy Batch manufacturing. Now a days Toffee Batch is also prepared in Vacuum Cookers. The material is cooked in upper pan and after cooking the same is discharged into lower pan for vacuum and remove the moisture from the Batch

WATER CIRCULATION COOLING PLATE

Technical Data

Capacity

50 Kg

Water Requirement

1 Liter to 50 Liters per Hour

(Depending on efficiency of Cooling required and water temperature)

Dimensions (L X W ) Cooling Area

1524 mm X 914 mm

Over all Size (L X W X H)

6' X 3' X 3' (1828 X 914 X 914)

Weight

Net 500 Kg

Water Cooling tilting type-cooling plate is useful for cooling and mixing of Lollypop/Candy and Toffee batch manually. The Cooling time is less on this plate then ordinary cooling plate because of continuous circulation of water inside the plate. If one side become hot, tilting the plate can use the other side.

BATCH ROLLER (MOTORIZED LIFTING)

Technical Data

Capacity	50 Kegs.
Tilting Drive	0.5 H.P 0.5 H.P. for rollers
Heater	500 watt
Discharge Height	35 " (889 mm)
Rope Diameter	20-60 mm
Dimensions (L X W X H)	1300mm X 600mm X 1700mm
Weight	Net 700 Kg.

Batch Former form conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with Stainless Steel Rollers. Electrical reverse and forward system is required extra for operating the batch former. There is ease of taking out rollers for cleaning operation.

THREE STAGE ROPE SIZER

Technical Data

Speed	Maximum 60 meter rope/minute
Application	Suitable for Lollypop / Chupa-Chup / Candy forming
Drive	1 H.P. (D.C.Drive)
Sizing Wheel Size	Input 33mm Out 21 mm
Dimension (L X W X H)	800mm X 500mm X 1100mm
Weight	325 Kg.

Three Stage rope sizer is suitable for Lollypop / Chupa-Chup / Candy Forming machines, which are equipped with two sets of sizer. It takes up rope from Batch roller and deliver to the rope sizer of Forming Machines

AUTOMATIC CANDY FORMING MACHINE

Technical Data

Application	Forming of all type and shape of Hard Candies
Capacity	2500 KGs/shift (Available in Capacity 1000 Kg/Shift (Depending upon Shape, Size and Weight of Candy
Product Size Minimum Candy Size Maximum Candy Size	10mm 40mm
Dimension (L X W X H)	1100 X 800mm X 1300mm
Drive	1.5 H.P. (D.C. or Three Phase)
Weight	Net 600 KGS

Plast-O-Plast Candy Forming Machine is suitable for forming almost all type, sizes and shapes of Candies. Even the smallest size 10 mm. is possible in this machine. It can produce one ton of candy/shift depending on size, shape and weight of candy. The scrap formed is collected in a separate tray fitted on the machine and only candies are delivered to conveyor

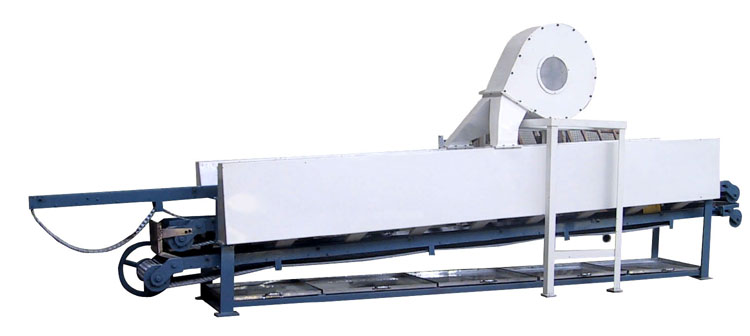

THREE WAY COOLING CONVEYOR

Technical Data

Application	Candy / Lollypop / Chupa-Chup Cooling upto 2.5 Ton/Shift.
Drive	Wire mash drive from the forming machine.
Blower	3. H.P.
Dimension Wire mesh Belts 1st Belt 2nd Belt 3rd Belt	16 Feet X 100 mm 12 Feet X 200 mm 12 Feet X 300 mm
Dimensions (L X W X H)	5000 mm X 500 mm X 900 mm
Weight	Net 850 Kg.

Three Way Conveyor is suitable for all type of Forming Machine having production capacity up to 2.5 Ton/Shift. In three way cooling conveyor the candies will be cooled and accurate in shape. The wire mash tensioning system is very easy and simple

FLAP TYPE CANDY FORMING (CENTER FILLED) CANDIES

Technical Data

Application	Forming of Center Filled Candies
Capacity	1500 KGs/shift (Depending upon Shape, Size and Weight of Candy
Product Size Minimum Candy Size Maximum Candy Size	10mm 40mm
Dimension (L X W X H)	1000 X 700mm X 1200mm
Drive	1.5 H.P. (D.C. or Three Phase)
Weight	Net 600 KGS

Flap Type Candy Forming Machine is suitable for forming almost all type, sizes and shapes of Candies. Spaceilly for Liquid Center Filled candies. It can produce up to 1500 Kg Candies /Per Shift depending on size, shape, weight and Liquid filling of candy. only candies are delivered to conveyor because it has O Pesentage scrap on this machine.

CENTER FILLER (LIQUID FILLER)

Technical Data

Application	Liquid Center Filler for Center filled Candies
Capacity	(Depending upon Shape, Size and Weight of Candy)
Dimension (L X W X H)	900 X 600mm X 1200mm
Drive	1.5 H.P. (D.C. or Three Phase)
Weight	Net 600 KGS

Center filler is use to supply Liquid material like Honey, paste etc in Candies.

AUTOMATIC CANDY WRAPPING MACHINE

Technical Data

Application	Candy Wrapping (Double End Twist) Wrapping
Capacity	300 PCs/Min
Drive	2 HP D.C.Drive
Heaters	2 kW
Dimensions	1600 x 1450 x 1650
Weight	Net 1000 Kg.

Candy wrapping Machine is suitable for twist wrapping of hard-boiled candies. The paper is also automatically cut into required lengths and candies are individually wrapped in this paper

CANDY PACKING (PILLOW-TYPE) PACKING

Technical Data

Application	Candy Packing (Pillow-type packing)
Capacity	600 PCs/Min
Drive	2 HP D.C.Drive
Heaters	3 kW
Dimensions (L X W X H)	1750 x 950 x 1550
Weight	Net 700 Kg. Gross 800 Kg.

Pillow Packing Candy Packing Machine is suitable for Pillow type packingfor hard-boiled candies. Pillow-Pack is installed with Photo-Eye Mark censer. Pillow-Pack keep Candies Fresher for long period of time
