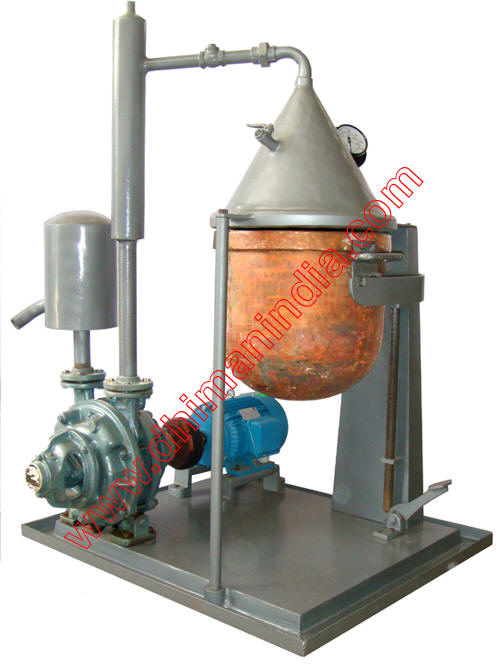

VACUUM PUMP



Technical Data

Application

Remove the moisture form Pre-Cooked Sugar Batch

Capacity

10 KGS. To 25 KGS. Per batch

Vacuum Time

Three Minutes

Drive

5 HP Three Phase

Stirrer Speed

45-90 RPM

Dimensions (L X W X H)

1000 x 900 x 1500

Weight

Net 400 Kg.

Vacuum Pump is suitable for Candy Batch manufacturing if Batch cooked on Diesel Bhatti (Manually) The material is Manually cooked on Diesel Bhatti When Temperature reached at 275 Degree Temperature, Tilted the Batch Manually into the pot of Vacuum Pump and lift the pot of Pump. It will remove Moisture of Batch within Three Minutes

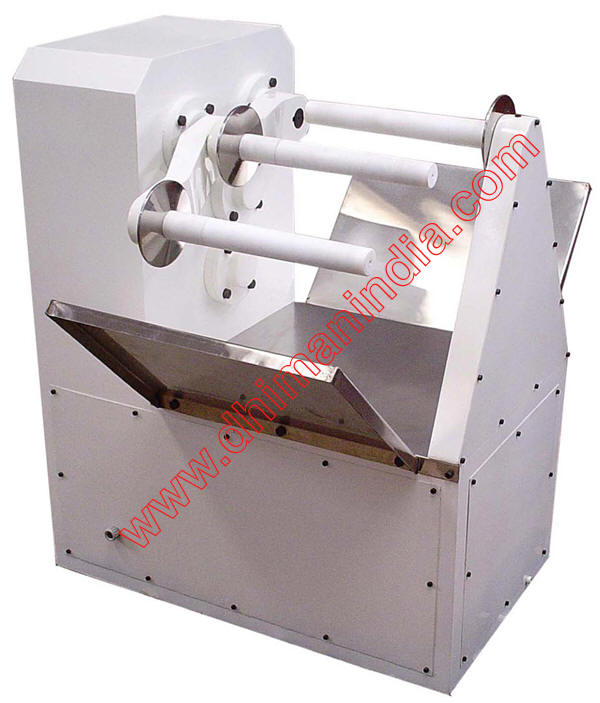

 PULLING MACHINE





Technical Data

Capacity

20 Kg Per batch

Output

1.5  Ton per Shift of eight hour

Dimensions

 950 mm X  710 mm X  1050 mm

Weight

Net 350 KGS.

                          Pulling Machine is used to produce a wide variety of products. The Pulled batch is useful to make Revari. Pulling reduce weight of Candy and make lightweight candy. It can also use to mixing Toffee Batch

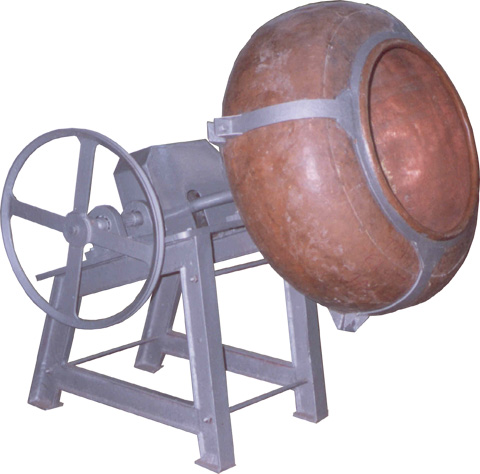

COPPER REVOLVING COATING PAN



Technical Data

Application

Sugar Coating (Confectionery Products)

Available

24" Inches / 30" / 36" / 42" / 48" (Other Sizes on Request)

Capacity

75 Kegs /  Per Batch (42" Revolving Pan)

Drive

1.5 H.P. Three Phase or Single Phase (42" Revolving Pan)

R.P.M.

22 R.P.M.

Dimensions (L X W X H)

1300mm X 1200mm X 1400mm

Weight

Net 300 Kg.

              Copper Revolving Coating Pan is use to Manufacture Sugar Coating on Confectionery Products like Sugar Coating on Tablet, Candy,  Saunf and many other Product.

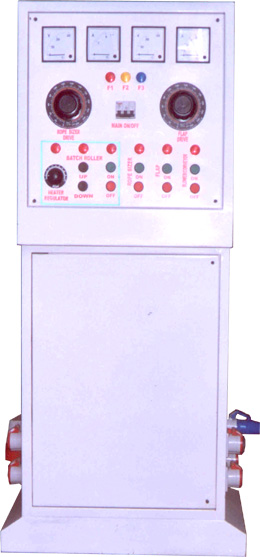

PANEL BOARD





Technical Data

Application Panel Board Candy, Toffee, Lollypop
Dimension (L X W X H) 1830  mm X 915 mm  X 400 mm
Weight Net 300 Kg

             Panel Board will install back side rope Sizer where a single man can operate Batch Roller, Rope Sizer, Forming Machine and Three way Cooling Conveyor by pressing a single Button



BATCH ROLLER (MECHANICAL)





Technical Data

Capacity 50 Kegs.
Heater 500 watt
Discharge Height 35 " (889 mm)
Rope Diameter 50-80 mm
Dimensions (L X W X H) 1300mm X 600mm X 1700mm
Drive 0.5 H.P. Three Phase
Weight Net 500 Kg.

                         Batch Former for conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's manual lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with M.S. or Stainless Steel Rollers. Rollers forward & Reverse by mechanical gear box.

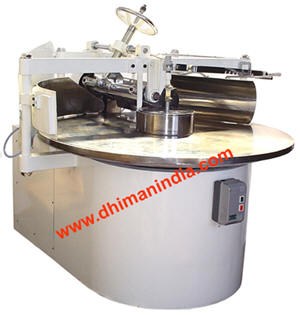

SUGAR BATCH KNEADING TABLE



Technical Data

Application

mixing of colors and scrap Of Candy / Lollipop batch

Capacity

50 Kg / Batch

Drive

5 H.P. A.C.

Cooling Water Consumption1st Belt

50 Liters per 100 Kegs. (Re-circulated)

Dimensions (L X W X H)

2200 mm X 1750 mm X 1550 mm

Weight

Net 1350 Kg. Gross 1500 Kg.

           This machine is suitable for automatic mixing of colors and scrap for Candy / Lollipop batch where production is large. It mixes 50 Kegs. Batch just in 3 Minutes with proper mixing of flavors and colors

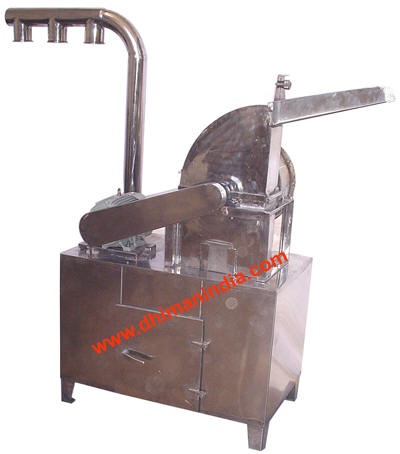

GRINDER FOR HERBAL PRODUCTS



Technical Data

Application

Grind Herbal and other products

Capacity

100 Kg to 300 Kg. (According to Material)

Drive

3 H.P. A.C.

Dimensions (L X W X H)

915 mm X 750 mm X 1500 mm

Weight

Net Weight 350 Kg

                    Grinder is use full for many many products. This machine is especially design for Herbal product. Stainless Steel grinder is also Available with All parts with Stainless Steel.
